Información Básica.
No. de Modelo.
WS005
Procesado de plástico
pe/pp/pvc
Tipo De Producto
Máquina de moldeo por extrusión
Modo de Alimentación
Multiple RSS
Estructura Asamblea
Tipo separada Extrusora
Tornillo
individual/gemela
Sistema de compromiso
Engranados
Estructura de tornillo Channel
Tornillo Profunda
Escape
Escape
Automatización
Automático
Computerizado
No Computarizado
motor
wn
partes eléctricas
abb/omron/siemens
color
personalizable
tiempo de entrega
30 días
gurantee
1 años
voltaje
personalizable
Paquete de Transporte
embalaje para navegar
Especificación
50-1500kg/h
Marca Comercial
vuelo
Origen
China
Código del HS
8477209000
Capacidad de Producción
6000sets/año
Descripción de Producto

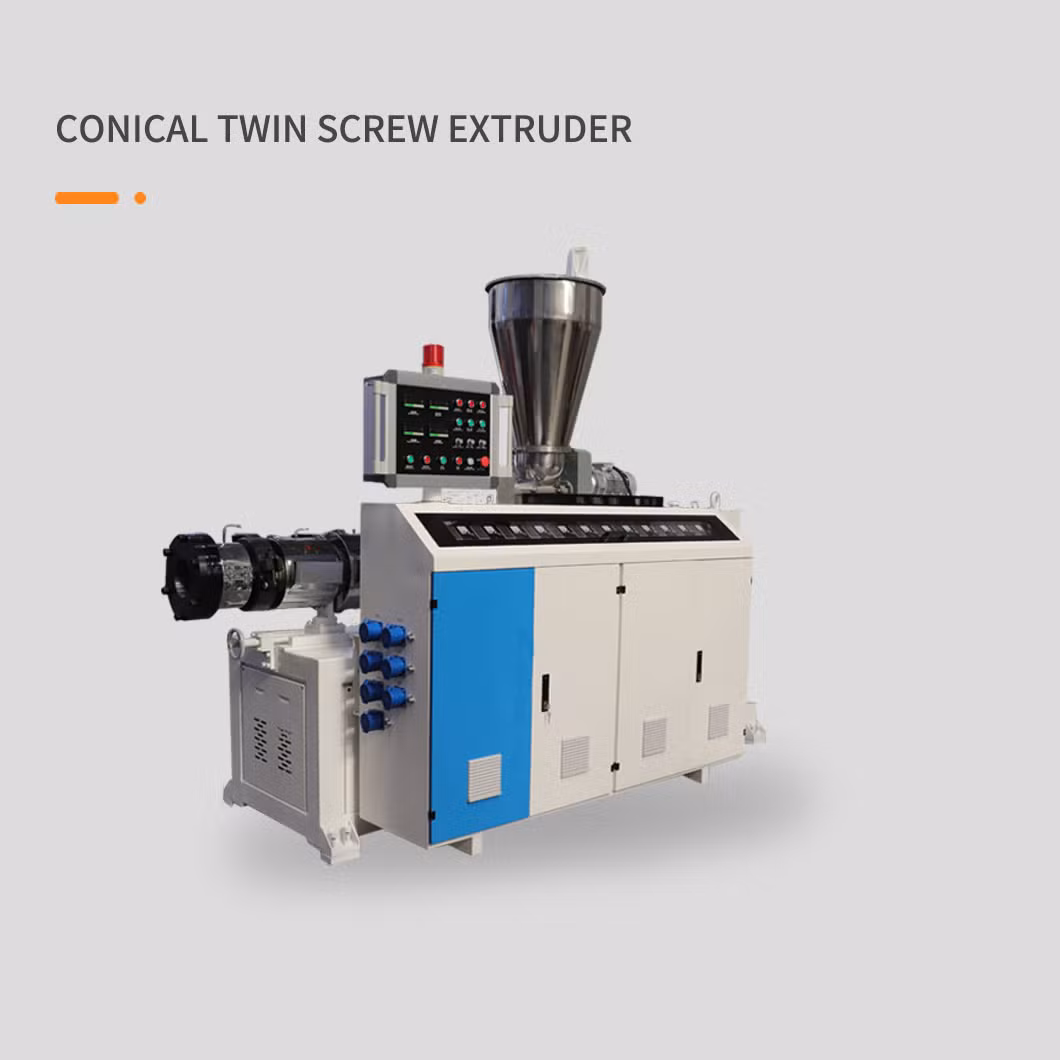

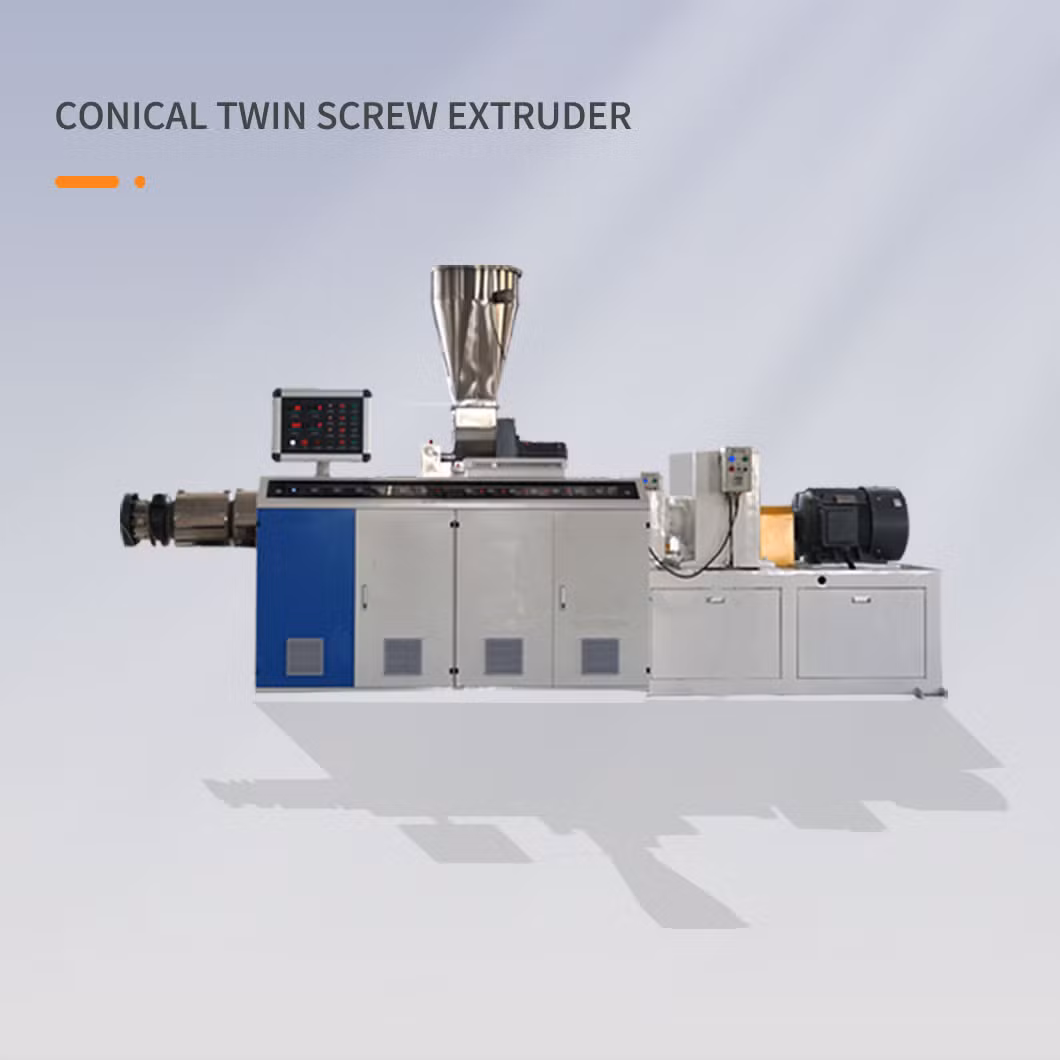

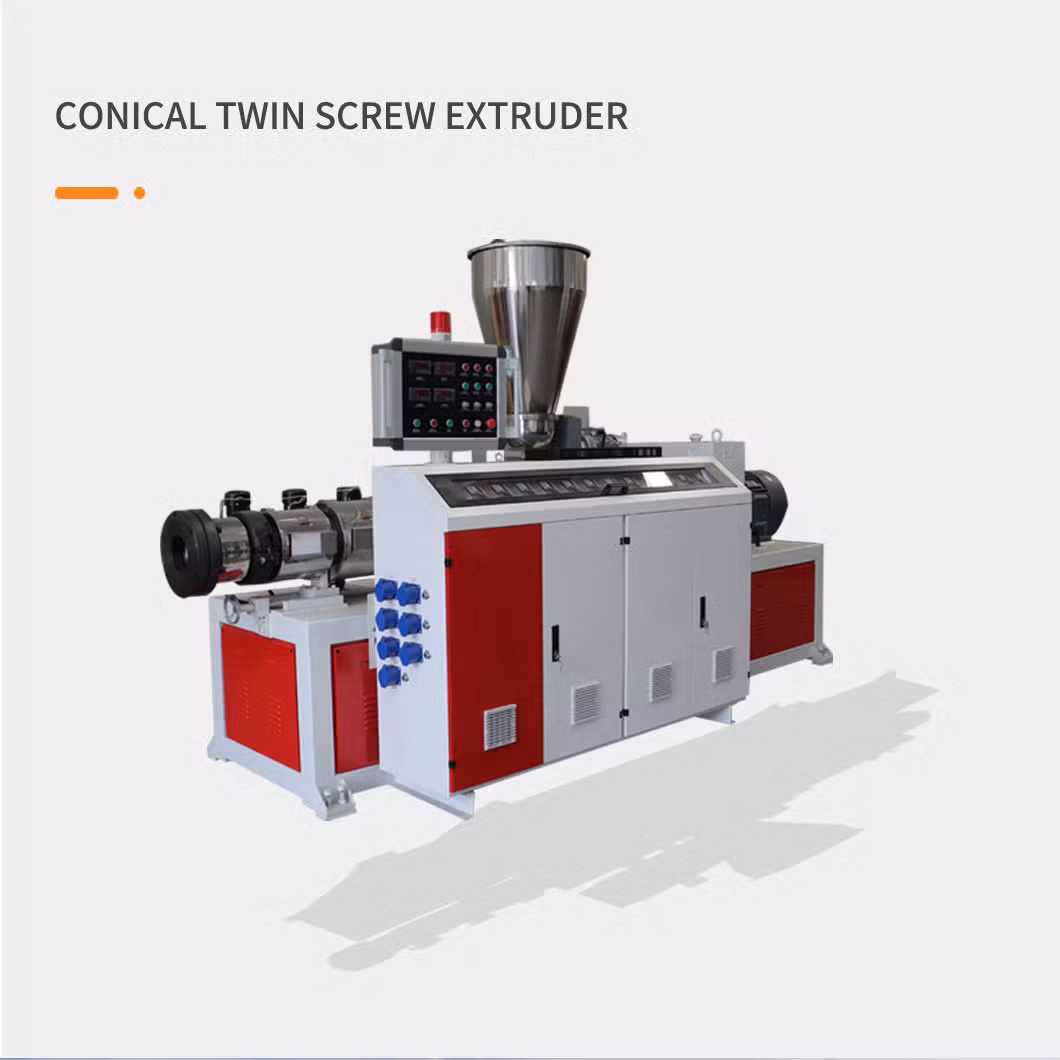

Description of Twin Screw Extruder:
The Twin Screw Extruder are mainly used for the processing of the soft/hard PVC pipe, PVC foaming board, PVC sheet, PVC Profile, PVC Trunk, PVC Roof tile, PVC Pelletizing and other polyolefin products, especially the direct processing of the plastic/powder materials.
Twin Screw Extruder is applicant for PVC powder material, with different mould and downstream equipment; the plastic extruder can produce pipe, profile, plate& sheet, and pelletizing. The extruder features in good plastic extrusion, good plasticization, even melting, high output capacity, wide application and reliable stability, specially designed gearbox and distributor and reinforced thrust bearing realize large transmission torque and long operation time. Electrical control system: Siemens PLC auto control system or Omron temperature control, and ABB Invert/transducer, Siemens contactor, and several alarm system.
Main Parameter of Twin Screw Extruder:
| Extruder Model | Screw Dia(mm) | Motor(kw) | Max.Output(kg/h) | Center Height(mm) | Speed(r/min) |
| SJZ45 | 45/90 | 15 | 120 | 1000 | 45 |
| SJZ51 | 51/105 | 18.5 | 150 | 1000 | 45 |
| SJZ55 | 55/110 | 22 | 180 | 1000 | 45 |
| SJZ65 | 65/132 | 30/37 | 300 | 1000 | 45 |
| SJZ80 | 80/156 | 55 | 450 | 1100 | 34.7 |
| SJZ92 | 92/188 | 110 | 900 | 1200 | 34.7 |
| SJZ110 | 110/220 | 160 | 1400 | 1200 | 32 |
Description of Single Screw Extruder:
The single screw extruder can process all kind of plastics products with auxiliary machines concerned, such as film, pipe, stick, plate, thread ,ribbon, insulating layer of cable, hollow products and so on .It is also used in graining. The machine design is advanced, production capacity is high, plasticization is good, and energy consumption is low. The extruder adopts hard gear surface for transmission. It has advantages of low noise, smooth operation, large loading, long use-life and so on.
Main Parameter of Twin Screw Extruder:
L/D=33:1 SERIES
| Extruder Model | Screw Dia(mm) | L/D Ratio | Max. Output(kg/h) | Center Height(mm) | Power(kw) |
| WS45/33 | 45 | 33:1 | 150 | 1000 | 37 |
| WS65/33 | 65 | 33:1 | 300 | 1000 | 75 |
| WS75/33 | 75 | 33:1 | 450 | 1100 | 110 |
| WS90/33 | 90 | 33:1 | 600 | 1100 | 160 |
| WS120/33 | 120 | 33:1 | 950 | 1100/1300 | 280 |
| WS150/33 | 150 | 33:1 | 1350 | 1300 | 400 |
L/D=38:1 SERIES
| Extruder Model | Screw Dia(mm) | L/D Ratio | Max. Output(kg/h) | Center Height(mm) | Power(kw) |
| WS45/38 | 45 | 38:1 | 220 | 1000 | 55 |
| WS60/38 | 60 | 38:1 | 450 | 1000 | 110 |
| WS75/38 | 75 | 38:1 | 600 | 1100 | 160 |
| WS90/38 | 90 | 38:1 | 800 | 1100 | 220 |
| WS105/38 | 105 | 38:1 | 1150 | 1100 | 315 |
| WS120/38 | 120 | 38:1 | 1600 | 1300 | 450 |
| WS150/38 | 150 | 38:1 | 2250 | 1500 | 630 |
